Inspecting Changes with Diffs

Driving a project forward requires a myriad of small changes. Understanding each of these individual changes is the key to understanding how the project evolved. Version control uses so-called "diffs" to illustrate these changes.

Displaying Diffs

Before we take a closer look at such a diff, we'll be looking at the different places in Tower where diffs are displayed:

Local Changes

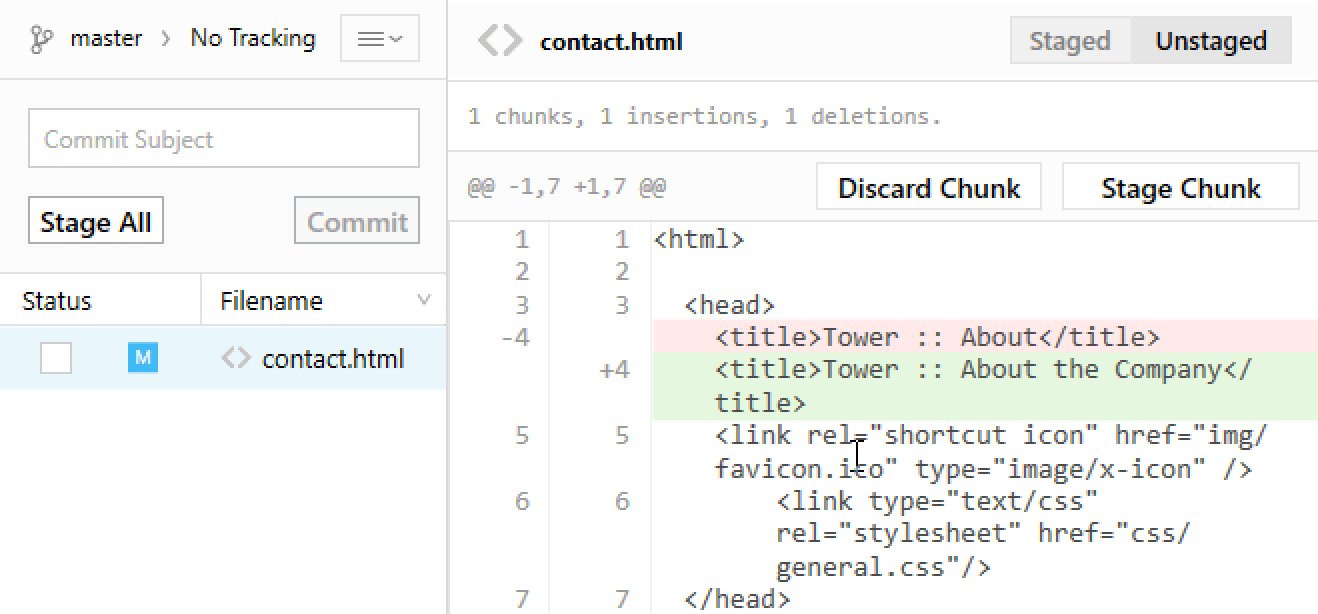

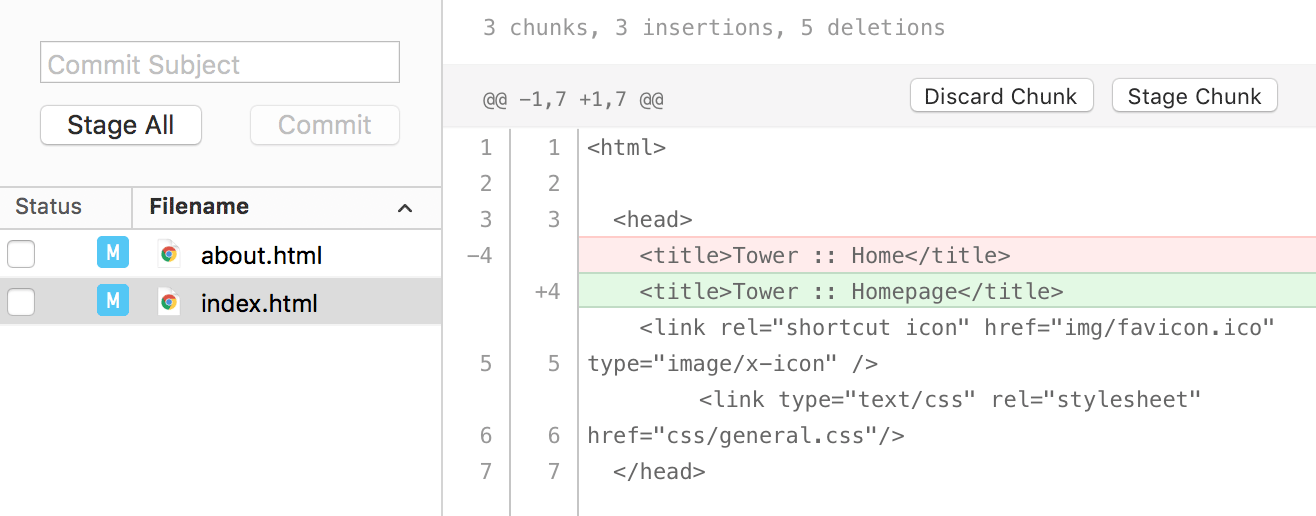

In the "Working Copy" view, Tower lists all currently changed files. Select a file in the list to see its detailed diff on the right. Using the toggle on the top right, you can even switch between staged and unstaged changes.

Committed Changes

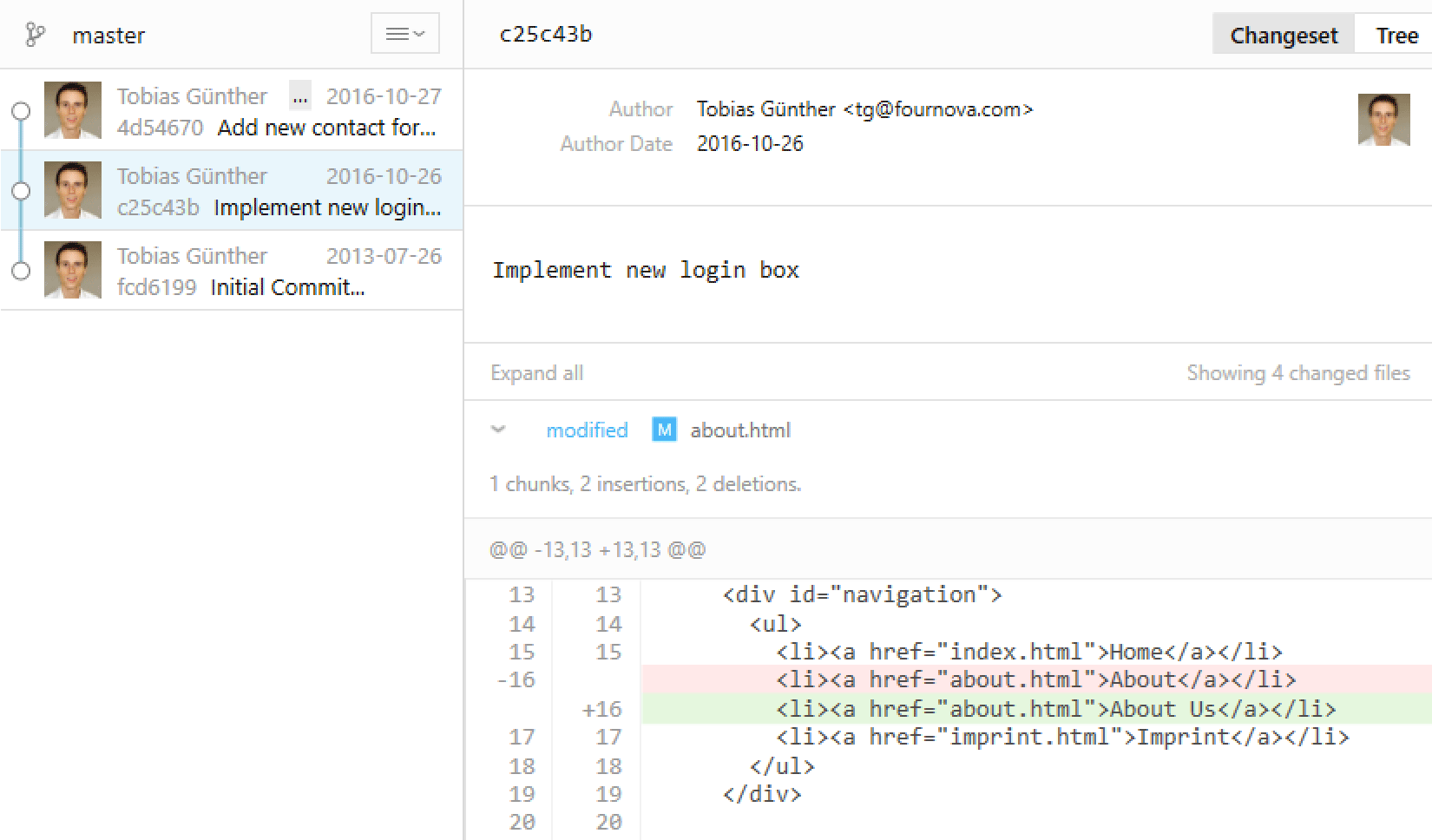

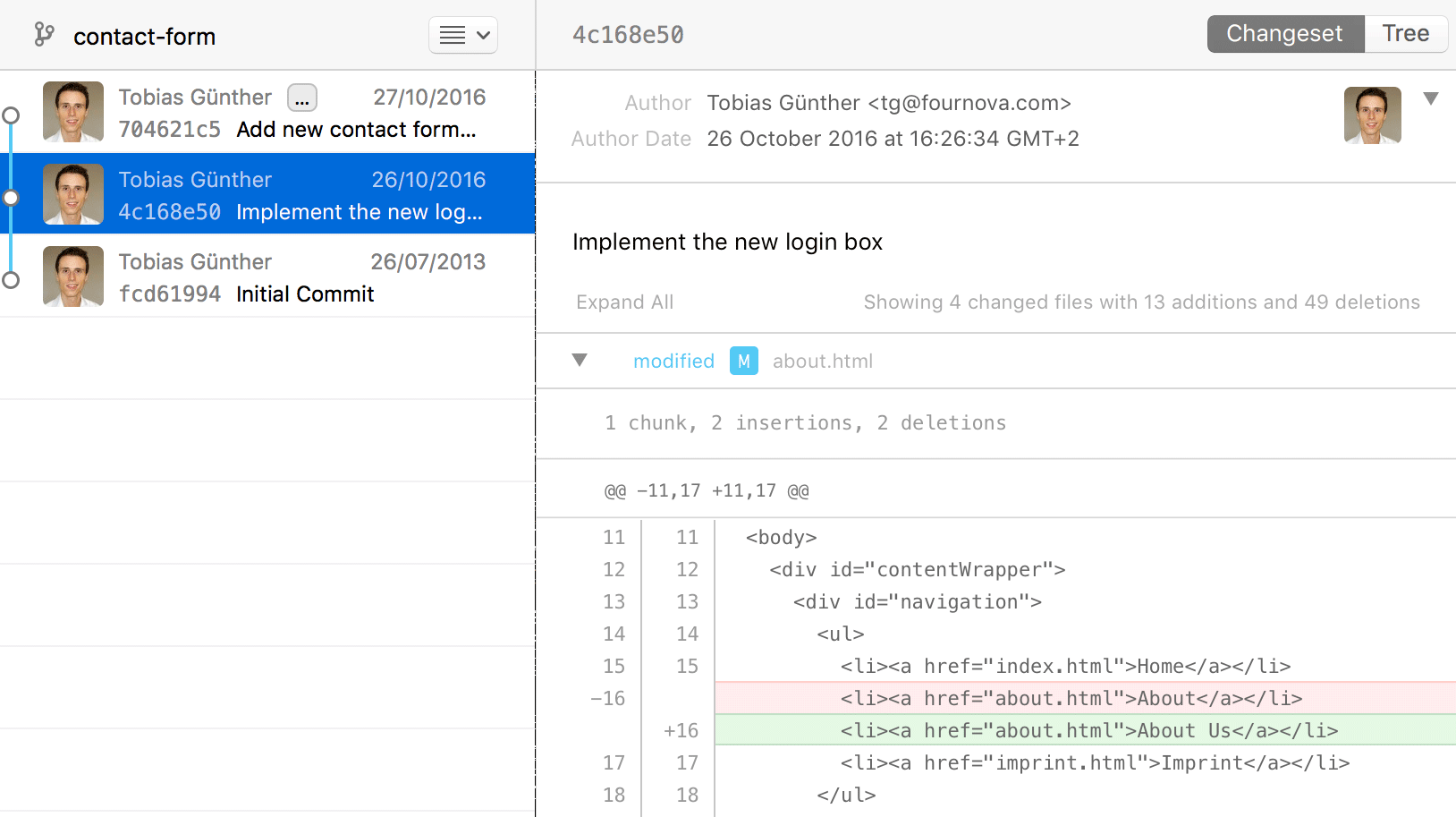

When you select the "History" item in the sidebar (or any branch or tag item), the associated commits are displayed in a list. Select any commit to see which files it changed on the right. You can expand each changed file item to see the detailed diff of this modification.

Reading Diffs

A diff (or, synonymously, a "patch"), is a visualization of the _diff_erences between two versions of a file. Let's take a detailed look at such a diff - and learn how to read it.

Compared Files

As said, a diff compares two versions of a file with each other.

• When looking at local changes, the file that you currently have on disk (with your local modifications) is compared with the file as it was last committed.
• When looking at committed changes, the file that's contained in this very commit is compared to the version of the same file in the commit before.

Chunk

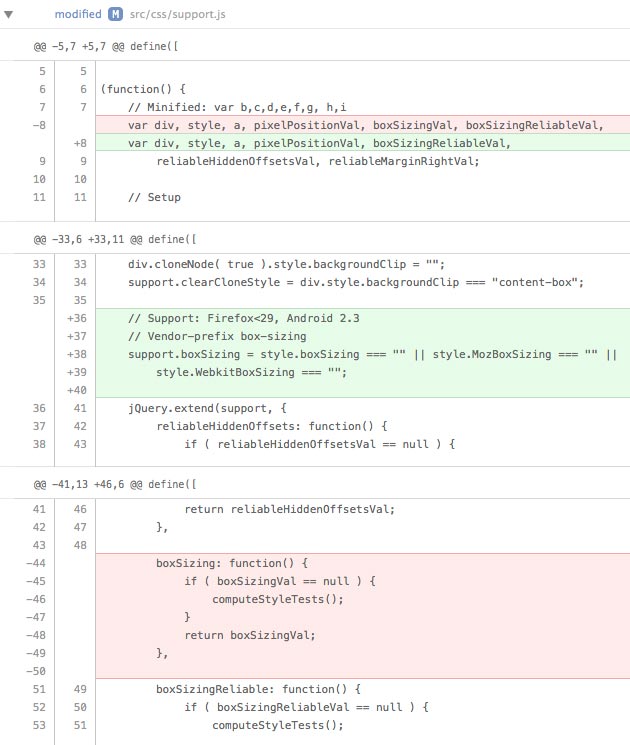

A diff doesn't show the complete file from beginning to end: you wouldn't want to see everything in a 10,000 lines file, when only 2 lines have changed. Instead, it only shows those portions that were actually modified. Such a portion is called a "chunk" (or "hunk"). In addition to the actual changed lines, a chunk also contains a bit of "context": some (unchanged, non-colored) lines before and after the modification so you can better understand in what context that change happened. In the example diff above, you can see 3 chunks.

Chunk Header

Each of these chunks is prepended by a header. Enclosed in two "@" signs each, Git tells you which lines were affected. In the second chunk of our example diff, the following lines are represented:

• From file A (represented by "-" signs), 6 lines are displayed, beginning from line no. 33
• From file B (represented by "+" signs), 11 lines are shown, also starting from line no. 33

The text after the closing pair of "@@" aims to clarify the context: Git tries to display a method name or other contextual information of where this chunk was taken from in the file. However, this greatly depends on the programming language and doesn't work in all scenarios.

Changes

Each changed line is prepended with either a "+" or a "-" symbol. These symbols help you associate the different lines with the correct version: a line that is prepended with a "-" sign comes from A, while a line with a "+" sign comes from B. Tower helps make this distinction even easier by assigning each version a background color.
In most cases, Git picks A and B in such a way that you can think of A/- as "old" content and B/+ as "new" content.

Let's look at our concrete example:

• In chunk #1, a line was modified: the red "-" line was changed to look like the green "+" line below.
• Chunk #2 contains five lines prepended with a "+". Since no counterpart in A existed for these lines (no lines with "-"), this means that these lines were added.
• Chunk #3 is just the opposite: in A, we have seven lines marked with "-" signs. However, B doesn't have an equivalent (no "+" lines), meaning they were deleted.
